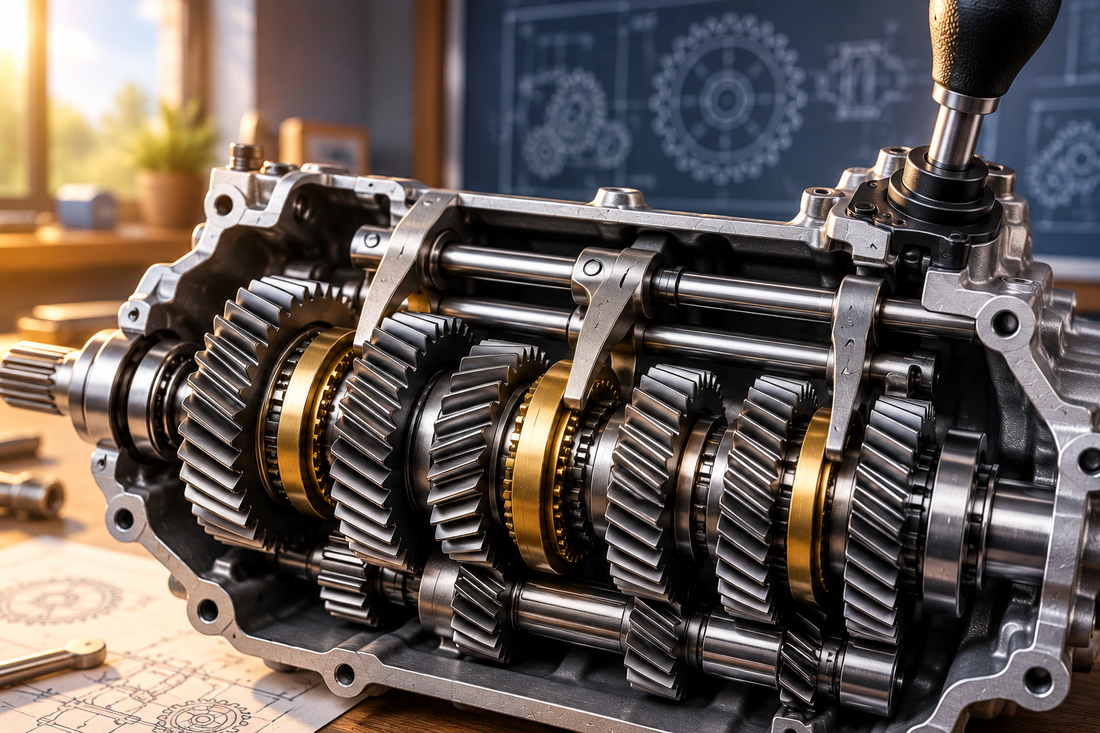

How Does a Gearbox Work? A Simple Guide to Gears and Gear Ratios

Imagine trying to ride a bicycle using only one gear. Starting from a standstill could be difficult, climbing a hill might require a lot of effort, and the same gear that helps you climb would not be ideal when you want to move quickly on a flat road.

Machines face a similar challenge.

An engine can produce power across a range of speeds, but a vehicle needs very different combinations of speed and turning force to start moving, climb a hill, accelerate, or travel efficiently at higher speeds.

That is where a gearbox comes in.

By using different combinations of gears, a gearbox changes the relationship between the engine's rotation and the rotation delivered to the wheels. Lower gears can provide more turning force at the wheels, while higher gears allow the vehicle to travel faster without requiring the engine to rotate proportionally faster.

And although modern gearboxes can contain sophisticated mechanical, hydraulic, and electronic systems, the basic idea becomes much easier to understand once we look at what gears actually do.

What Is a Gearbox?

A gearbox is a mechanical system that uses gears to change how rotational motion is transferred from one part of a machine to another.

In a vehicle, the gearbox sits between the engine and the driven wheels as part of the drivetrain. Its job is to provide different gear ratios, allowing the same engine to work effectively under very different conditions.

Think again about a bicycle. A low gear makes it easier to start moving or climb a hill, while a higher gear is better suited to travelling faster once you are already in motion. A vehicle gearbox follows a similar mechanical principle, although the system itself is considerably more complex.

Inside a gearbox, gears of different sizes interact to change the relationship between rotational speed and torque. Selecting a different gear changes that relationship.

This means a gearbox does not simply make a vehicle “go faster.” Depending on the selected ratio, it can help provide more torque when greater turning force is needed or allow the drivetrain to operate more efficiently as vehicle speed increases.

That ability to adapt the same source of power to different situations is what makes the gearbox such an important mechanical invention.

A Short History of the Gearbox

Gearboxes did not appear as a single invention created by one person. They evolved alongside engines and early automobiles as engineers searched for better ways to transfer power while allowing vehicles to start, climb, accelerate, and travel at different speeds.

Early automotive transmissions were relatively simple and required considerable skill from the driver. Changing gears could involve manually matching the speeds of different rotating components — a process that was far less smooth and convenient than shifting gears in a modern car.

During the early twentieth century, transmission design steadily improved. One important development was the synchromesh gearbox, which helped match the rotational speeds of gears during a shift and made manual gear changes much easier. By 1929, Cadillac was introducing a fully synchronized transmission designed to reduce the difficult and noisy shifting associated with earlier systems.

But engineers were already pursuing another idea: what if the vehicle could change gears without requiring the driver to operate the clutch and manually coordinate every shift?

That search eventually led to one of the major milestones in transmission history. In 1940, General Motors introduced the Hydra-Matic on Oldsmobile vehicles, describing it as the industry's first fully automatic transmission. The system eliminated the clutch pedal and automatically selected different gear ratios while driving.

There is also a fascinating Brazilian connection to this story. Brazilian engineer José Braz Araripe, working with Fernando Iehly de Lemos, has been credited in Brazilian historical accounts with developing a hydraulic automatic-transmission concept and presenting it to General Motors in 1932. Reports say that GM acquired the project before the Hydra-Matic reached production later in the decade.

However, the exact relationship between their design and the production Hydra-Matic is not as firmly documented in primary historical sources, so it is more accurate to describe this as an important reported contribution rather than claim that one person simply “invented the automatic gearbox.”

From those early mechanical systems to today's sophisticated transmissions, the objective has remained remarkably similar: use different gear ratios to deliver power in the way that best suits the situation.

And that brings us to an important distinction: who — or what — decides when those gears should change?

Manual vs. Automatic Gearboxes: What’s the Difference?

Both manual and automatic gearboxes solve the same fundamental problem: they provide different gear ratios so that an engine can operate effectively as driving conditions change.

The main difference is how those ratios are selected.

In a traditional manual gearbox, the driver chooses when to change gear. Using the gear lever and clutch, the driver temporarily disconnects the engine from the transmission, selects another gear ratio, and then reconnects the power flow.

This gives the driver direct control over when each gear is used.

An automatic transmission performs much of this process without requiring the driver to operate a clutch pedal or manually select each forward gear. Depending on its design, the transmission uses mechanical, hydraulic, and increasingly electronic systems to determine when and how the ratio should change.

This is also why an automatic transmission should not be thought of simply as a manual gearbox with a mechanism moving the gear lever. The engineering inside can be fundamentally different.

Traditional automatics such as the early Hydra-Matic, for example, use planetary gear systems and hydraulic control rather than the same arrangement found in a conventional manual gearbox. Modern vehicles have expanded the idea even further, with several different transmission technologies now available.

In both cases, changing the transmission ratio helps balance two things that we have already encountered: speed and torque.

But how can a collection of gears actually change that relationship?

To answer that, we need to look inside the mechanism.

How Does a Gearbox Work?

At its simplest, a gearbox works by transferring rotational motion through different combinations of gears.

Power enters the transmission through an input shaft. Inside the gearbox, gears transmit that rotation through the mechanism before it eventually reaches an output shaft, which carries the resulting motion onward through the drivetrain.

The important part is that the input and output do not always have to rotate at the same speed.

By selecting different gear combinations, the gearbox changes the ratio between input speed and output speed. That allows the same engine rotation to produce different combinations of rotational speed and torque at the output.

Imagine a small gear driving a much larger gear. The larger gear turns more slowly, but the arrangement can provide greater torque at the output. Change the relationship between the gears, and the balance changes.

That is essentially what selecting a different gear ratio allows a transmission to do.

In a manual gearbox, moving the gear lever ultimately changes which gear ratio is engaged. The exact mechanism varies between transmission designs, but the result is the same: a different mechanical relationship is selected between the input and output.

This is why first gear is useful when a vehicle needs greater torque to begin moving, while higher gears are better suited to travelling at greater road speeds once the vehicle is already in motion.

The clever part lies in the gears themselves — because their size and number of teeth determine how that relationship changes.

Imagine a small gear with 10 teeth driving a larger gear with 20 teeth.

For every complete turn of the larger gear, the smaller gear must turn twice. The larger gear therefore rotates more slowly, while the system can deliver greater torque through it.

Reverse the arrangement — let the larger gear drive the smaller one — and the smaller gear turns faster, but with less torque.

This trade-off between speed and torque is one of the fundamental ideas behind mechanical gearing.

The number of teeth matters because gear teeth ensure that the movement remains synchronized. If one gear has twice as many teeth as another, their rotational speeds will have a predictable relationship.

Gears can also change the direction of rotation. When two external gears mesh directly, they rotate in opposite directions. Add another gear between them, and the final gear rotates in the same direction as the first.

This means gears can do much more than simply transfer motion. By combining gears of different sizes and arranging them in different ways, engineers can control:

• rotational speed;
• torque;
• direction of rotation.

These principles appear everywhere — from bicycles and clocks to power tools, industrial machines, and vehicle transmissions.

And once we know how gears interact, we can put a number on that relationship.

That number is called the gear ratio.

In practical terms:

• the input gear turns 2 times;
• the output gear turns 1 time;
• the output rotates more slowly;
• but more torque can be available at the output.

This is often called gear reduction.

Now reverse the arrangement. If the 20-tooth gear drives the 10-tooth gear, one rotation of the larger gear makes the smaller gear rotate twice. The output therefore turns faster, while the available torque is reduced.

A gearbox takes advantage of this principle by providing multiple gear ratios. Selecting a different ratio changes how the rotation entering the gearbox relates to the rotation leaving it.

That is why the numbers associated with different gears are not simply labels such as first, second, third, or fourth. Each gear represents a different mechanical relationship between input and output.

You do not need complicated mathematics to understand the basic idea. Just remember:

Higher numerical reduction → more torque multiplication, lower output speed.
Lower numerical reduction → less torque multiplication, higher output speed for the same input speed.

Once a vehicle is moving, this ability to choose between different ratios becomes extremely useful.

But what actually changes inside the gearbox when the driver moves the gear lever?

What Happens When You Change Gears?

When a driver changes gear, the gearbox changes the gear ratio used to transfer power through the transmission.

In a traditional manual transmission, pressing the clutch pedal temporarily separates the engine's power from the gearbox. This reduces the load on the transmission while the driver selects another gear.

Moving the gear lever operates a selector mechanism inside the gearbox. Rather than simply sliding large gears around until they mesh — as we might imagine — many modern manual transmissions use gears that remain in mesh while synchronizers and locking mechanisms connect the appropriate gear to the shaft.

The synchronizer has an important job. Before a new gear is fully engaged, it helps bring rotating components to compatible speeds. This allows the shift to happen much more smoothly than in early gearboxes, where drivers often had to manage those speed differences themselves.

Once the new gear is engaged and the clutch reconnects the engine to the transmission, power flows through a different gear ratio.

The result can be felt immediately.

In a lower gear, the transmission provides greater torque multiplication, which is useful when starting from rest or when more turning force is required.

Shift into progressively higher gears, and the relationship changes. For the same road speed, the engine can generally operate at a lower rotational speed, making higher gears better suited to faster cruising.

So moving the gear lever does much more than change a number on the dashboard. It changes the mechanical path through which power is transmitted.

And that explains why a vehicle needs more than one gear in the first place.

Why Do Cars Need Different Gears?

A car needs different gears because no single gear ratio is ideal for every driving situation.

When a vehicle starts from rest, it needs enough torque at the wheels to overcome inertia and begin moving. A lower gear provides greater torque multiplication, making it easier to get the vehicle underway or deal with situations that require more turning force, such as climbing a hill.

But that same ratio would not be ideal as the vehicle travels faster.

As road speed increases, progressively higher gears allow the wheels to turn more for a given engine speed. This means the engine does not need to keep increasing its rotational speed in direct proportion to the vehicle's speed.

Think back to our bicycle example.

You might choose a low gear to start moving or climb a steep hill, then shift into higher gears as you gain speed. The source of power — your legs — remains the same. What changes is the mechanical relationship between your effort and the wheel.

A vehicle gearbox applies the same fundamental principle with an engine.

Different gear ratios therefore allow the drivetrain to adapt to different situations:

• lower gears favor greater torque multiplication;
• higher gears favor greater output speed relative to engine speed;
• choosing between them helps keep the engine operating within a useful range.

And once you understand that principle, a gearbox stops looking like a mysterious collection of gears and starts becoming something you can actually explore.

Builders assemble the model piece by piece, creating a mechanical system with visible gears and a manual shifting mechanism.

Once assembled, the exposed construction makes it possible to observe gears moving together while experimenting with different shift positions. It provides a tangible way to explore concepts such as rotational motion, gears, mechanical relationships, and shifting.

Just as importantly, the learning happens during the build itself. Following the construction process encourages concentration, spatial reasoning, patience, and problem-solving — skills that are closely connected with hands-on engineering.

The model is not intended to replace a technical automotive transmission or reproduce every component found inside a real car gearbox. Instead, it provides an accessible way to explore some of the mechanical principles behind gears and gearboxes through building and observation.

For curious builders ages 14+, it turns the question “How does a gearbox work?” into a challenge they can explore with their own hands.
